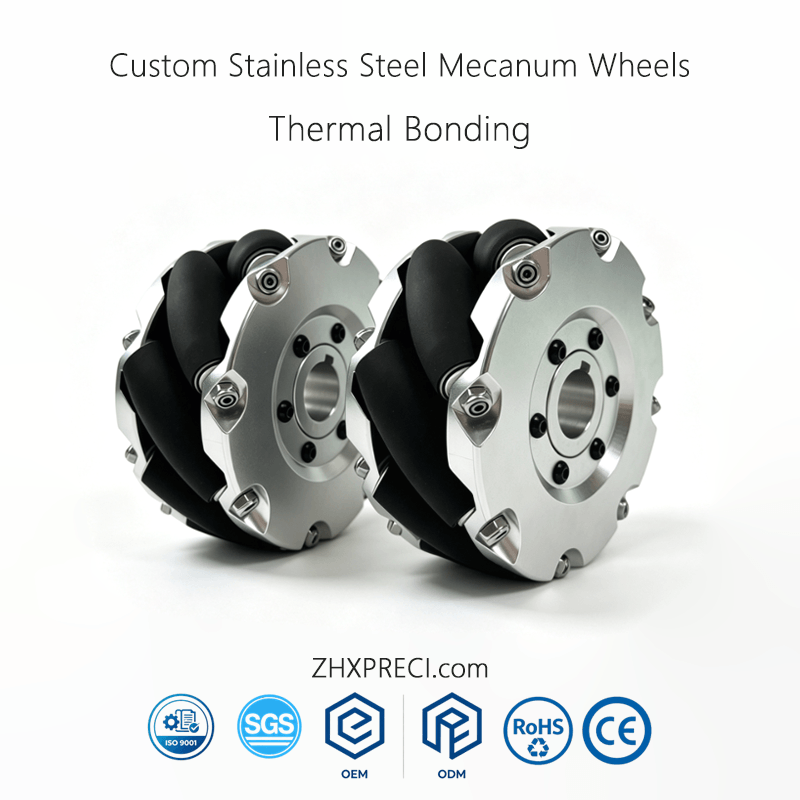

Custom High Temperature Stainless Steel Mecanum Wheels – Top OEM Solution from a Professional China Manufacturer
Why Choose This Product
Our stainless steel mecanum wheels feature a high-temperature resistant roller formula bonded to a precision-machined stainless steel hub. This gives them a distinct advantage over standard carbon steel wheels, which can deform or corrode in harsh environments. The benefit for your business is clear: reduced unplanned downtime, lower maintenance costs, and reliable AGV performance in demanding settings. We provide evidence through rigorous factory testing, including 5000-hour continuous operation reports and full material certifications from our ISO9001-registered facility.
Custom roller compounds (PU, NBR, EPDM, silicone) and hardness from Shore A 20° to 98° are available, as well as different surface patterns. Dynamic balancing tolerance ≤0.05mm, ISO9001 certified, oil‑resistant and chemical‑resistant formulas help reduce noise and prolong service life.
Typical applications: Heavy‑load AGVs, material handling equipment (conveyors, transfer carts), farm automation (autonomous tractors, harvesters), stage machinery, and omnidirectional platforms for warehouses.
Technical Specifications
This set contains four high‑performance 16″ mecanum caster wheels. Designed for 1200kg total payload, suitable for heavy material handling equipment and farm machinery where precise multidirectional control is critical. As a China OEM/ODM manufacturer, we support customized sizes, materials, and hardness.
| 406mm Mecanum Caster Wheel Set (16 inch) – 1200kg Capacity, Exclusive PU Formula, New Aluminium Hub | |
| Diameter | 406.4 mm (16 inch) |
|---|---|
| Width | 110 mm (standard, custom width available) |
| Number of Rollers | 9 |
| Number of Plates | 2 |
| Body Material | New aluminium alloy (high‑strength, lightweight) |
| Roller Material | Aluminum core + exclusive polyurethane coating (steel core optional for extra heavy duty) |
| Net Weight (per set) | 4.2 kg × 4 (16.8 kg total for set) |
| Load Capacity | 1200 kg / Set (≈ 2645 lbs) |
| Certifications | ISO9001, Test Report, RoHS |
| Packing Options | Plastic bags, cartons, wooden case, pallet, container, etc. |
| Color Options | White, black, grey, or as your requirement |
| Custom Diameter Range | 5–200 mm (standard set 406.4 mm, custom diameters available) |
| Services & Support | 24/7 customer service, shipping tracking, new style notifications, free two revisions on custom orders |
✔ Set includes 4 mecanum caster wheels (each 4.2 kg). ✔ 1200kg heavy‑duty omnidirectional design – 360° movement. ✔ Exclusive polyurethane formula for farm & material handling. ✔ Custom materials & full certifications – contact us for bulk orders.
Details Images
Commonly Used Elastomer Properties (Material Performance)
| Compound | Hardness Range (Shore A) | Abrasion Resistance | Tear Resistance | Load Bearing |
|---|---|---|---|---|
| Silicone | 40-90 | 1 | 1 | 1 |
| Nitrile/PVC | 20-95 | 4 | 3 | 3 |
| EPDM | 20-95 | 4 | 3 | 3 |
| Nitrile Rubber | 20-95 | 3 | 3 | 3 |
| Neoprene | 5-95 | 3 | 4 | 4 |
| Hypalon | 30-95 | 4 | 4 | 4 |
| Hydrogenated Nitrile | 50-98 | 5 | 5 | 5 |
| Natural Rubber | 25-98 | 5 | 5 | 5 |
| Polyurethane | 20-98 | 5 | 5 | 5 |
| Carboxylated Nitrile | 45-95 | 5 | 5 | 5 |
Ratings: 1 = low, 5 = high. Our exclusive polyurethane formula achieves rating 5 in abrasion and load bearing – ideal for 1200kg farm and material handling equipment. Custom hardness from Shore 20A to 98A is available from our factory.
About ZHXPRECI – China OEM/ODM Factory
About Us
Customers Visiting
As a China-based manufacturer and OEM/ODM supplier of industrial wheels and rollers since 2010, ZHXPRECI serves clients in over 50 countries. We offer customization — from roller hardness (Shore A 20°~98°) to hub materials (new aluminium, steel) and mounting patterns. Our 16-inch mecanum caster wheels with exclusive polyurethane formula are tested to meet ISO9001 standards, supporting reliable performance for your heavy material handling equipment and farm robotic systems. Wholesale orders are welcome with competitive direct pricing.
Factory & Equipment
Our Certifications (ISO9001, RoHS, Testing Reports)
Production & Inventory Policy
Lead time: Actual delivery time may vary due to raw material availability, machine scheduling, and peak season fluctuations. After order confirmation, we provide the most accurate estimate and keep transparent communication.
Stock status: We generally do not hold large finished-goods inventory, but some popular standard models may have limited dynamic stock (which changes as sales and production progress). Please confirm real-time availability with our team before ordering.
Bulk & urgent orders: For mass production or tight schedules, we recommend early discussion of capacity and production planning. We will do our best to support your timeline.
Frequently Asked Questions
1. What is the exact payload of your 16-inch mecanum caster wheel set?
Our 406mm wheel set is rated for 1200kg per four wheels. Lab tests confirm safe operation up to 1350kg static load. This high capacity is ideal for heavy material handling equipment and farm automation.
2. How does your exclusive polyurethane formula benefit farm environment use?
The formula offers excellent resistance to mud, moisture, and moderate chemicals. Many clients use these wheels on autonomous tractors and harvesters. We can also add extra sealing for dusty or wet farm conditions.
3. Can you customize the polyurethane hardness for our AGV application?
Yes. As an OEM/ODM manufacturer, we provide roller hardness from Shore A 20° up to 98°. Our technical team offers free advice on selecting the right hardness for your load and floor type.
4. What is the minimum order quantity for this 406mm wheel set?
Small orders (1-4 sets) are accepted for sample evaluation. For custom hardness or steel core versions, MOQ is typically 10 sets. Please inquire about current flexibility.
5. What is your typical lead time for standard vs custom 16-inch mecanum wheels?
For standard sets (if raw materials are in stock), we can ship within 10-15 days. Custom orders (e.g., different PU hardness or steel core) usually take 20-30 days depending on production schedule and material supply. We always confirm an updated timeline after order placement.
6. What packaging options do you provide for international shipping of heavy wheel sets?
Standard packaging includes individual plastic bags and sturdy cartons. For bulk orders, we offer wooden cases, pallets, or container loading. Anti-rust treatment is applied for sea freight.
7. How do you ensure quality consistency for 1200kg-load mecanum wheels?
Each batch undergoes roller adhesion tests, dynamic balancing (≤0.05mm), and 1200kg load validation. We are ISO9001 certified and follow strict in-process inspection. Overseas machine downtime is costly, so we don't compromise on materials.
8. What is the purchasing process for OEM/ODM orders?
Contact us with your requirements (size, roller material, hardness, mounting pattern). Our engineers provide drawing confirmation, then we issue a proforma invoice. After payment, production begins with sample photos or pre-shipment video inspection.
9. What payment methods do you accept?
We accept bank transfer (T/T), and for smaller orders, PayPal or Western Union. Long-term partners may discuss letter of credit. Ask our team for details.
10. Which shipping methods are available for 16-inch mecanum caster wheels?
We ship by express (DHL, UPS, FedEx, TNT) for small parcels, by air freight for medium volumes, or by sea freight for full containers. We'll advise the most cost-effective option based on your location and urgency.
11. What warranty do you offer on these 1200kg polyurethane mecanum wheels?
Standard warranty is 180 days from shipment date against manufacturing defects. Extended warranty (12 months) is available for bulk orders. Normal wear and tear or improper installation is not covered.
12. Can your mecanum wheels be used in outdoor or muddy farm fields?
Yes, our exclusive polyurethane formula offers good resistance to mud, water, and mild chemicals. For extreme conditions (high temperature or oil immersion), we recommend EPDM or Viton compounds. Contact our team for material selection guidance.
Looking for a reliable manufacturing partner for 1200kg mecanum wheels?
Get in touch for quick quotes, custom samples, and volume discounts. We are here to support your project from design to delivery – whether for material handling equipment or farm automation.
