Custom Omni Wheels

What Are Custom Omni Wheels?

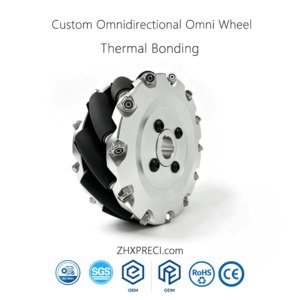

Custom omni wheels, also known as universal wheels or omnidirectional wheels, are a specialized type of wheel engineered to enable movement in any direction — forward, backward, sideways, and diagonally — without the need for steering mechanisms. Unlike conventional wheels that restrict motion to a single axis, omni wheels incorporate a series of small rollers mounted around the circumference of the main wheel. These rollers rotate freely along their own axes, allowing the wheel to slide laterally while simultaneously rolling forward. This unique design makes omni wheels the preferred choice for holonomic drive systems in robotics, automated guided vehicles (AGVs), material handling equipment, and industrial automation platforms.

At ZHXPRECI, we specialize in the precision manufacturing of custom omni wheels tailored to meet the specific demands of diverse industrial applications. Custom Omni Wheels from ZHXPRECI | China OEM/ODM Factory Manufacturer Supplier Custom Elastomer Wheels & Rollers represent the culmination of years of engineering expertise, advanced polyurethane processing technology, and a commitment to delivering reliable, high-performance motion solutions. Our wheels are engineered with durability, load capacity, and operational efficiency at the forefront of every design.

How Do Custom Omni Wheels Work?

The operating principle of an omni wheel is both elegant and functionally powerful. The main wheel body rotates around its primary axle, providing forward or backward motion. Simultaneously, the passive rollers mounted around the wheel's perimeter rotate freely around their own axes, which are typically oriented perpendicular to the main wheel's rotational axis. This dual-axis motion capability allows the wheel to generate traction in one direction while enabling free sliding in the perpendicular direction.

When multiple omni wheels are arranged in a specific configuration — typically three or four wheels in a triangular or rectangular layout — the coordinated control of each wheel's rotational speed and direction enables omnidirectional movement. By independently varying the speed and rotation of each wheel, the system can achieve holonomic motion: the ability to instantaneously move in any direction from a standing start, rotate in place, or execute complex maneuvers that would be impossible with conventional wheel configurations.

The roller design is critical to performance. Each roller must maintain consistent contact with the ground surface while rotating freely with minimal friction. The materials selected for these rollers — typically high-performance elastomers such as polyurethane — directly influence the wheel's traction, wear resistance, noise levels, and overall service life.

Key Features and Technical Characteristics

Omnidirectional Mobility

The defining feature of custom omni wheels is their ability to provide true omnidirectional movement. This capability eliminates the need for steering systems, reduces turning radii to zero, and enables precise positioning in confined spaces. For applications requiring frequent direction changes or operation in tight quarters — such as warehouse automation, hospital logistics, or robotic platforms — omnidirectional mobility translates directly into improved operational efficiency and reduced cycle times.

Custom Elastomer Rollers

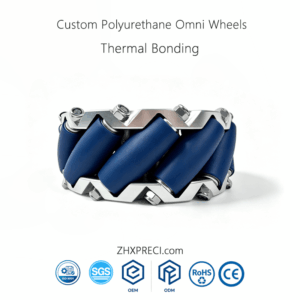

The rollers on omni wheels are manufactured from high-performance elastomer materials, with polyurethane being the most widely adopted due to its exceptional combination of wear resistance, load-bearing capacity, and resilience. Custom elastomer rollers can be formulated with different durometer ratings — typically ranging from 85A to 95A Shore hardness — to match specific application requirements. Softer durometers provide enhanced shock absorption and floor protection, while harder compounds deliver superior load capacity and wear resistance for heavy-duty applications.

Custom Omni Wheels from ZHXPRECI | China OEM/ODM Factory Manufacturer Supplier Custom Elastomer Wheels & Rollers are manufactured using premium polyurethane compounds that offer low compression set, excellent abrasion resistance, and consistent performance across a wide temperature range. Our elastomer rollers are precision-cast to ensure dimensional accuracy and uniform material properties throughout each roller.

Wheel Hub and Structural Materials

The main wheel hub — the structural core of the omni wheel — is typically manufactured from aluminum alloy (such as 6061 or 7075), engineering-grade polymers, or carbon fiber-reinforced composites. Aluminum alloy hubs offer an optimal strength-to-weight ratio combined with excellent machinability and corrosion resistance when properly anodized. For applications requiring maximum weight reduction, polymer or composite hubs provide significant mass savings while maintaining adequate structural integrity.

The selection of hub material directly impacts the wheel's moment of inertia, which in turn affects acceleration, deceleration, and overall system responsiveness. ZHXPRECI offers comprehensive material selection guidance to ensure each custom omni wheel is optimized for its specific operating environment and performance requirements.

Load Capacity and Performance Metrics

Custom omni wheels are available in a wide range of load capacities to suit applications from light-duty robotics to heavy industrial equipment. Load capacities vary based on wheel diameter, roller material, hub construction, and bearing configuration. Typical load ratings range from 80 kg per wheel for smaller diameter units to over 1,300 kg for heavy-duty industrial variants.

Performance metrics that distinguish high-quality omni wheels include:

• Lateral load capacity: The maximum load each wheel can support when moving sideways without radial head contact
• Forward moving load capacity: The maximum load when traveling in the primary direction
• Rolling resistance: Minimized through precision bearings and optimized roller geometry

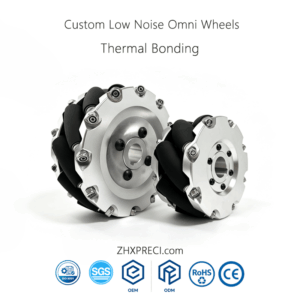

• Noise characteristics: Polyurethane rollers provide quiet operation essential for indoor and hospital environments
• Floor protection: High-quality elastomer rollers leave no marks on floors

What Are the Primary Applications of Custom Omni Wheels?

Custom omni wheels find application across a diverse range of industries and use cases:

Robotics and Automation

Omni wheels are the standard choice for mobile robotics platforms requiring agile maneuverability. From research and educational robots to industrial autonomous mobile robots (AMRs), omni wheels enable precise positioning, obstacle avoidance, and efficient navigation in dynamic environments. Holonomic drive systems powered by omni wheels allow robots to perform complex path planning and execute smooth, coordinated movements.

Material Handling and Logistics

In warehouses, distribution centers, and manufacturing facilities, omni wheels are integrated into AGVs, conveyor transfer systems, and workstation turntables. The ability to move loads in any direction without repositioning the vehicle significantly improves throughput and reduces material handling costs.

Medical and Healthcare Equipment

Hospital beds, medical carts, and patient transfer equipment benefit from the maneuverability and floor-friendly characteristics of omni wheels. The quiet, mark-free operation of polyurethane rollers is particularly valued in healthcare environments where noise reduction and floor protection are priorities.

Specialized Industrial Equipment

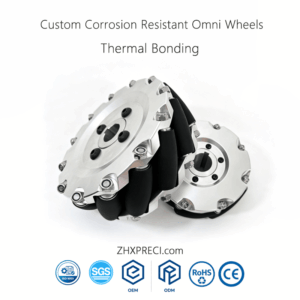

Custom omni wheels are also employed in pipe inspection robots, automated assembly lines, feed tables, feed rails, and furniture castors. For applications in humid, dusty, or corrosive environments, stainless steel hub options and specialized roller compounds are available to ensure long-term reliability.

How to Select the Right Custom Omni Wheel for Your Application

Selecting the optimal omni wheel configuration requires careful consideration of several key factors:

Load Requirements

Determine the maximum static and dynamic loads the wheels must support. Consider both the weight of the equipment itself and any payload it will carry. Select a wheel with a load capacity that provides an adequate safety margin above your maximum expected load.

Operating Environment

Evaluate the conditions in which the wheels will operate. Factors to consider include:

• Floor surface type and condition (smooth, rough, contaminated)
• Temperature range (polyurethane performance varies with temperature)
• Exposure to chemicals, oils, or moisture
• Indoor versus outdoor operation
• Noise constraints

Mobility Requirements

Define the movement patterns required for your application. Consider whether the system needs full holonomic control (movement in any direction) or simpler omnidirectional capability. This will influence wheel count, arrangement, and control system complexity.

Durability and Service Life

Assess the expected operational hours and maintenance intervals. High-quality polyurethane rollers with precision bearings offer extended service life and reduced maintenance costs compared to lower-grade alternatives.

Customization Options

Custom Omni Wheels from ZHXPRECI | China OEM/ODM Factory Manufacturer Supplier Custom Elastomer Wheels & Rollers can be tailored to your exact specifications. Customization options include:

• Wheel diameter and width
• Roller material and durometer
• Hub material and finish
• Bearing type and configuration
• Roller count and spacing
• Branding and color options

Omni Wheels vs. Mecanum Wheels: What's the Difference?

While both omni wheels and mecanum wheels enable omnidirectional movement, they differ in their roller orientation and resulting motion characteristics. Omni wheels feature rollers mounted perpendicular to the main wheel's rotational axis. Mecanum wheels, by contrast, have rollers set at a 45-degree angle to the wheel axis.

This difference has practical implications. Mecanum wheels generally offer better performance on slopes and uneven surfaces, while omni wheels provide simpler control algorithms and can achieve omnidirectional movement with fewer powered wheels — as few as two motors in a four-wheel configuration. The choice between the two depends on specific application requirements, terrain conditions, and control system complexity.

Why Choose ZHXPRECI for Custom Omni Wheels?

ZHXPRECI (Shenzhen Zhenghongxin Precision Technology Co., Ltd.) has been a trusted manufacturer of precision components since 2014. Our specialization in high-wear-resistant polyurethane rollers and precision machining has established us as a preferred supplier for clients across North America, Asia, and beyond.

Custom Omni Wheels from ZHXPRECI | China OEM/ODM Factory Manufacturer Supplier Custom Elastomer Wheels & Rollers are manufactured under strict quality control protocols, ensuring every wheel meets or exceeds industry standards for dimensional accuracy, material consistency, and performance reliability. Our OEM and ODM capabilities allow us to work closely with clients from concept through production, delivering custom solutions that exactly match application requirements.

Our manufacturing facility is equipped with advanced CNC machining centers, precision casting equipment, and comprehensive testing facilities. We maintain rigorous quality management systems to ensure consistent product quality across every production run.

Frequently Asked Questions

What is an omni wheel?

An omni wheel is a type of wheel with small rollers mounted around its circumference that rotate perpendicular to the main wheel's axis. This design enables the wheel to roll forward while simultaneously sliding sideways, allowing vehicles and equipment to move in any direction without steering.

What materials are used for omni wheel rollers?

Omni wheel rollers are typically manufactured from polyurethane (PU), nylon, glass-filled nylon, rubber, or electrically conductive materials. Polyurethane is the most common choice due to its excellent wear resistance, load-bearing capacity, and floor-friendly characteristics.

How do I determine the right omni wheel size for my application?

Wheel size selection depends on load requirements, ground clearance needs, and available mounting space. Larger diameter wheels generally offer higher load capacities and better performance on uneven surfaces, while smaller wheels provide lower profiles and reduced weight. Consult with a technical specialist to determine the optimal size for your specific application.

Can omni wheels be customized?

Yes. Custom omni wheels can be tailored in terms of diameter, width, roller material and durometer, hub material, bearing type, and finish. Custom Omni Wheels from ZHXPRECI | China OEM/ODM Factory Manufacturer Supplier Custom Elastomer Wheels & Rollers are fully customizable to meet specific application requirements.

What is the typical lifespan of an omni wheel?

The service life of an omni wheel depends on operating conditions, load, speed, and maintenance. High-quality polyurethane rollers with precision bearings can provide reliable performance for thousands of operating hours under normal conditions. Regular inspection and maintenance help extend service life.

Are omni wheels suitable for outdoor use?

Yes, with appropriate material selection. For outdoor or harsh environment applications, wheels can be specified with corrosion-resistant hub materials (such as stainless steel) and roller compounds formulated to withstand UV exposure, temperature extremes, and environmental contaminants.

What is the difference between omni wheels and conventional casters?

Conventional casters use a swivel mechanism to change direction, requiring space for the caster to rotate. Omni wheels achieve directional change through roller geometry alone, eliminating the need for swivel clearance and enabling zero-radius turns and instantaneous direction changes.

How many omni wheels do I need for my system?

Most omnidirectional platforms use either three or four omni wheels. Three-wheel configurations provide stability and simplicity, while four-wheel configurations offer higher load capacity and redundancy. The optimal number depends on load requirements, stability needs, and control system design.

Do omni wheels leave marks on floors?

High-quality polyurethane omni wheels are designed to roll smoothly without leaving marks on most floor surfaces. For environments with particularly sensitive flooring, specialized roller compounds are available to provide additional floor protection.

Can I get samples or prototypes before placing a bulk order?

Yes. ZHXPRECI supports sample and prototype development to validate design and performance before full-scale production. Our OEM/ODM services include design consultation, material selection guidance, and prototype manufacturing to ensure the final product meets all requirements.

Conclusion

Custom omni wheels represent a transformative technology for applications requiring agile, precise, and efficient movement. From robotics and automation to material handling and medical equipment, omni wheels enable capabilities that conventional wheel systems cannot match. The key to successful implementation lies in selecting the right combination of wheel size, roller material, hub construction, and bearing configuration for your specific application.

Custom Omni Wheels from ZHXPRECI | China OEM/ODM Factory Manufacturer Supplier Custom Elastomer Wheels & Rollers combine precision engineering, high-quality materials, and manufacturing expertise to deliver reliable, durable, and high-performance motion solutions. With comprehensive customization capabilities and a commitment to quality, ZHXPRECI is your trusted partner for custom omni wheel solutions.

Contact our technical team today to discuss your application requirements and discover how custom omni wheels can enhance the performance and efficiency of your equipment.
