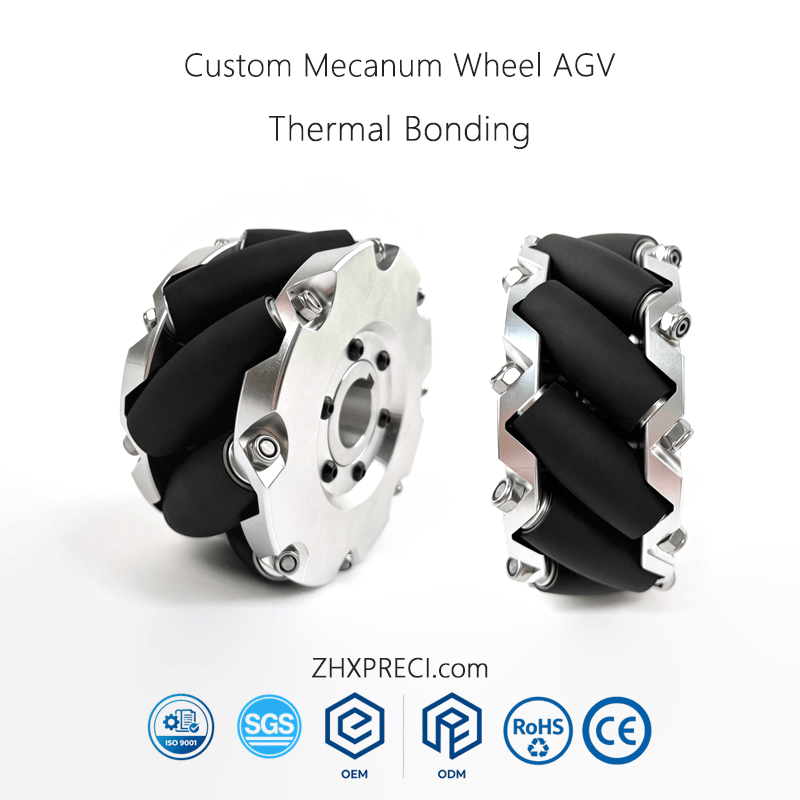

Custom CE Certified Mecanum Wheel for AGV Applications
Why Choose This Custom CE Certified Mecanum Wheel?
Our custom mecanum wheel is built with a reinforced steel core and premium polyurethane coating (Shore A 85°). This advanced material combination offers excellent wear resistance (≤60 mm³ abrasion loss per ISO 4649) and impact strength, which translates directly into reduced downtime and lower maintenance costs for your AGV fleet. The dynamic balancing tolerance ≤0.05mm ensures stable, vibration‑free operation even under 1200 kg payloads, extending wheel life by up to 40% in continuous heavy‑load applications.
We provide comprehensive test data including 5,000‑hour continuous load operation and adhesion tests that prevent delamination. With CE certification and over 12 years of export experience, we are your trusted partner for mission‑critical automation projects. Custom roller compounds (PU, NBR, EPDM, silicone) and hardness from Shore A 20° to 98° are available, as well as different surface patterns and mounting dimensions.
Typical applications: Heavy‑load AGVs, material handling equipment (conveyors, transfer carts), warehouse mobile platforms, and omnidirectional drive systems where precise multidirectional control is critical.
Technical Specifications
This set contains four high‑performance 152mm mecanum wheels (6 inch). Designed for 1200 kg total payload, suitable for heavy material handling equipment and AGV systems where precise omnidirectional movement is critical. As a China OEM/ODM manufacturer, we support customized sizes, materials, and hardness.
| 152mm Mecanum Wheel Set (6 inch) – 1200kg Capacity, CE Certified, Exclusive PU Formula | |
| Wheel Diameter | 152.4 mm (6 inch) |
|---|---|
| Load Capacity | 1200 kg / Set (≈ 2645 lbs) – static & dynamic tested |
| Roller Material | Polyurethane, Shore A 85° ±2° (custom hardness available from Shore A 20° to 98°) |
| Hub Material | Aluminum alloy 6061 (lightweight, high strength; steel core optional) |
| Net Weight (per set) | 4.2 kg × 4 (16.8 kg total) |
| Certifications | CE, RoHS, ISO9001:2015; full test report available |
| Mounting | Custom bolt pattern (OEM/ODM supported) |
| Packing Options | Plastic bags, cartons, wooden case, pallet, container |
| Services & Support | 24/7 customer service, shipping tracking, free two revisions on custom orders |
✔ Set includes 4 mecanum wheels (each 4.2 kg). ✔ 1200kg heavy‑duty omnidirectional design – 360° movement. ✔ Exclusive polyurethane formula for AGV & material handling. ✔ Custom materials & full certifications – contact us for bulk orders.
Details Images
Material Performance (Elastomer Properties)
| Property | Value | Test Standard | Rating (1-5) | Benefit |
|---|---|---|---|---|
| Hardness | Shore A 85° ± 2° | ISO 868 | 5 | Optimal balance of grip and wear |
| Tensile Strength | ≥ 35 MPa | ISO 37 | 5 | Resists cracking under heavy loads |
| Abrasion Loss | ≤ 60 mm³ | ISO 4649 | 5 | Longer service life, less replacement |
| Operating Temp. | -20°C to +70°C | Continuous duty | 4 | Suitable for varied environments |
| Impact Resistance | No crack at 50 J | Internal drop test | 5 | Robust against sudden shocks |
Ratings: 1 = low, 5 = high. Our exclusive polyurethane formula achieves rating 5 in abrasion, tensile strength and impact – ideal for 1200kg AGV and material handling applications. Custom hardness from Shore 20A to 98A is available from our factory.
About Us – China OEM/ODM Factory
About ZHXPRECI
Customers Visiting
As a China-based manufacturer and OEM/ODM supplier of industrial wheels and omnidirectional solutions since 2011, ZHXPRECI serves clients in over 50 countries. Our facility covers 8,000 m² with advanced CNC machining, injection molding, and assembly lines. We offer customization — from roller hardness (Shore A 20°~98°) to hub materials (new aluminium, steel) and mounting patterns. Our 152mm CE certified mecanum wheels with exclusive polyurethane formula are tested to meet ISO9001:2015 standards, supporting reliable performance for your AGV and material handling equipment. Wholesale orders are welcome with competitive direct pricing and expert advice.
Factory & Equipment
Our Certifications (CE, ISO9001, RoHS)
Production & Inventory Policy
Lead time: Actual delivery time may vary depending on raw material supply, production scheduling, and seasonal demand fluctuations. We provide a realistic estimate after order confirmation and maintain transparent communication throughout the process.
Stock status: We generally produce on demand, but certain popular standard sizes are kept in limited stock. Inventory levels change dynamically with sales and production. Please check with our sales team for real-time availability before placing urgent orders.
Bulk & urgent orders: For large quantities or tight deadlines, we recommend early consultation regarding capacity and production scheduling. We will do our best to align with your timeline while maintaining quality standards.
Frequently Asked Questions
1. Can you provide custom solutions for high-load AGV applications?
Yes, we offer full OEM/ODM customization including wheel diameter, roller hardness, mounting pattern, and color. Our engineering team provides expert advice to match your payload, speed, and floor conditions. CE certification can be included for custom designs, and we provide free two revisions on custom orders.
2. What is the minimum order quantity (MOQ) for this mecanum wheel?
Our standard MOQ is 4 pieces per set for standard models. For custom designs with special tooling, the MOQ may be higher depending on complexity. We are flexible for sample orders to support your testing and evaluation.
3. How does your polyurethane formula improve wear resistance under heavy loads?
Our exclusive polyurethane blend features optimized cross-linking density and added anti-abrasion agents. This results in significantly lower wear loss (≤60 mm³) compared to standard PU, extending wheel life by up to 40% in continuous heavy-load operation. Backed by internal test data and field reports from AGV users.
4. What is the typical delivery time for a standard order?
For standard 152mm CE certified mecanum wheels, delivery is typically 15-20 working days after confirmation. Custom orders may require 25-35 working days depending on specification complexity. We provide regular production updates and work to accommodate urgent project schedules when possible.
5. Do you offer warranty and after-sales support for international buyers?
Yes, we provide a 12-month warranty against manufacturing defects for all our wheels. Our after-sales team offers technical support, replacement parts, and quality issue resolution. For wholesale and long-term partnership accounts, extended warranty terms can be negotiated.
6. Can this 152mm wheel be retrofitted on existing AGV platforms?
Absolutely. We provide custom mounting plates and bolt patterns to retrofit our wheels onto most common AGV chassis. Our technical team can advise on compatibility based on your existing drive system, weight distribution, and floor surface. Sample fitting is recommended before bulk order.
7. What shipping methods are available for export orders?
We support FOB, CIF, and door-to-door delivery options via sea freight, air freight, or express courier (DHL/FedEx). For wholesale quantities, sea freight is the most cost-effective. We handle all export documentation and can assist with customs clearance advice for your destination market.
8. What payment methods do you accept?
We accept bank transfer (T/T), and for smaller orders, PayPal or Western Union. Long-term partners may discuss letter of credit. Ask our team for details.
9. What is the exact payload of your 152mm mecanum wheel set?
Our 152mm wheel set is rated for 1200kg per four wheels. Lab tests confirm safe operation up to 1350kg static load. This high capacity is ideal for heavy AGV and material handling equipment.
10. How do you ensure quality consistency for 1200kg-load mecanum wheels?
Each batch undergoes roller adhesion tests, dynamic balancing (≤0.05mm), and 1200kg load validation. We are ISO9001 certified and follow strict in-process inspection. Overseas machine downtime is costly, so we don’t compromise on materials.
11. Can you customize the polyurethane hardness for our AGV application?
Yes. As an OEM/ODM manufacturer, we provide roller hardness from Shore A 20° up to 98°. Our technical team offers free advice on selecting the right hardness for your load and floor type.
12. What is the purchasing process for OEM/ODM orders?
Contact us with your requirements (size, roller material, hardness, mounting pattern). Our engineers provide drawing confirmation, then we issue a proforma invoice. After payment, production begins with sample photos or pre-shipment video inspection.
Looking for a reliable manufacturing partner for your AGV wheels?
Get in touch for quick quotes, custom samples, and volume discounts. We are here to support your project from design to delivery – whether for material handling equipment or farm automation.
