Mecanum Wheel Robot Drive Roller – Intelligent Trolley Wheel, Universal Roller (Fulai Wheel) 152mm for AGV Trolley Accessories | NM152A Heavy-Duty PU Set
Why choose this Mecanum wheel robot drive roller?
Unlike standard casters, our intelligent trolley wheel enables true omnidirectional movement (forward, backward, sideways, diagonal, and rotation). Each wheel contains eight free‑rotating polyurethane rollers arranged at 45°. The aluminum alloy hub and steel‑core rollers provide exceptional wear resistance (abrasion rating 5 in our lab), and the advanced bonding technology prevents roller separation even after 5000 hours of continuous AGV operation.
Custom roller compounds (PU, NBR, EPDM, silicone) are available. We can adjust hardness from Shore A 20° (soft, quiet) to 98° (extremely durable for heavy loads). Surface patterns (smooth, grooved, or studded) can be added for specific traction needs. Dynamic balancing tolerance ≤0.05mm is standard. ISO9001 certified, oil‑resistant and chemical‑resistant formulas help reduce noise and maintenance on your production floor.
Proven applications: AGV/AMR fleets, heavy‑load omnidirectional platforms (up to 1200kg using 4 wheels), conveyor system transfers, printing press registration tables, automated production line shuttles, stage machinery with silent movement, and workshop trolleys for aerospace part assembly.
Technical Specifications – Mecanum Wheel Robot Drive Roller / Universal Roller
This set contains four high‑performance mecanum wheels (left‑hand and right‑hand pairs) suitable for robotics, AGV, and industrial automation where precise multidirectional control is required. As a China OEM/ODM manufacturer, we support customized sizes and materials for intelligent trolley wheels and Fulai wheel designs. Below are the verified NM152A parameters measured at our ISO9001 lab.
| NM152A – Heavy Duty Polyurethane Mecanum Wheel Set (6 inch / 152mm) for AGV Trolley Accessories | |
| Diameter | 152.4 mm (6 inch) |
|---|---|
| Width | 80 mm |
| Number of Rollers | 8 (4 left-hand, 4 right-hand per set) |
| Number of Plates | 2 (split hub design for easy maintenance) |
| Body Material | Aluminum alloy 6061-T6 (CNC machined) |
| Roller Material | Aluminum core + Polyurethane coating (steel core optional for >500kg loads) |
| Net Weight | 2.6 kg × 4 (10.4 kg total for set) |
| Load Capacity | 300 kg / Set (≈ 661 lbs) – static load tested to 450kg for safety margin |
| Certifications | ISO9001:2025, Test Report (load, wear, adhesion), RoHS 3.0 |
| Packing Options | Plastic bags + foam inserts, export cartons, wooden case (for sea freight), pallet, or container loading. |
| Color Options | White, black, gray, red, blue (as your requirement) |
| Custom Diameter Range | 5–200 mm (standard set 152.4 mm, custom diameters available – we have molds for 100, 127, 152, 175, 203, 254, 304 mm) |
| Services & Support | 24/7 customer service (English/Chinese), shipping tracking, new style notifications, free two revisions on custom orders, 3D drawing support for mounting adapters. |
✔ Set includes 4 mecanum wheels (each 2.6 kg). ✔ Heavy‑duty omnidirectional design – 360° movement for intelligent trolley. ✔ Custom materials & full certifications – contact us for bulk orders. ✔ Each wheel is individually dynamic balanced before shipment.

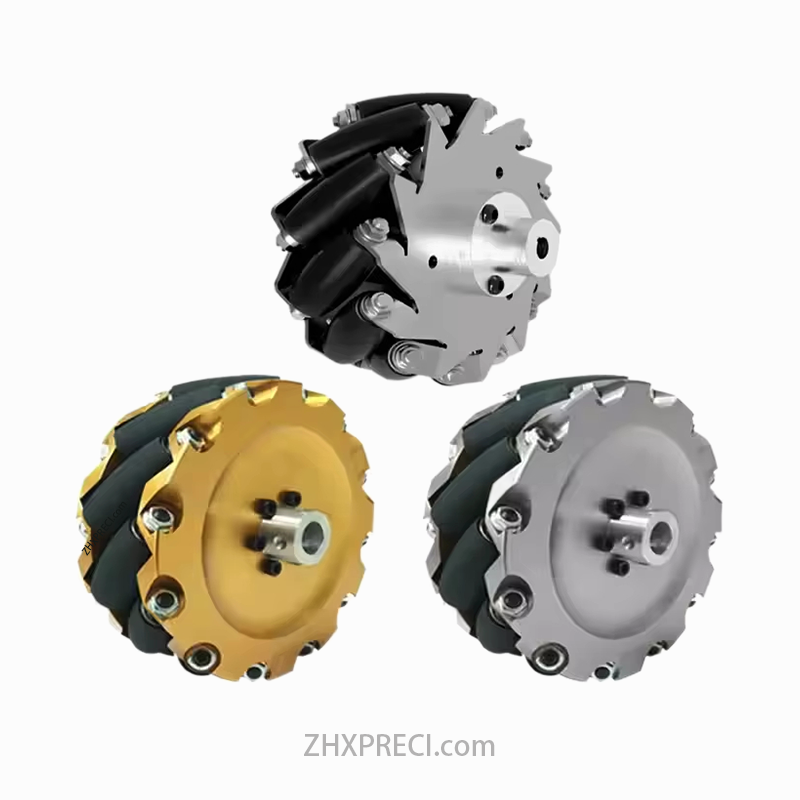

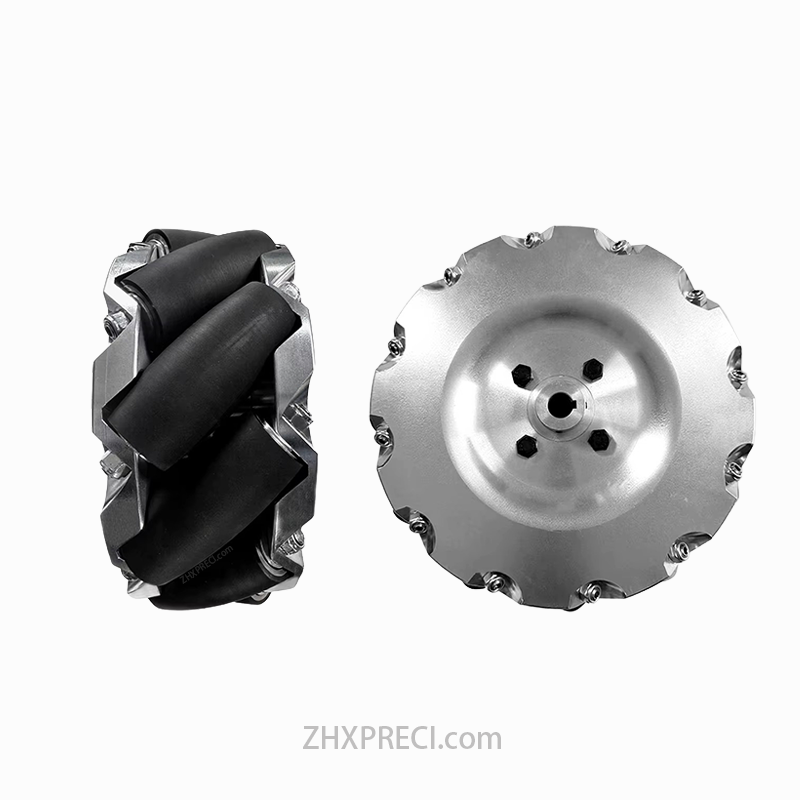

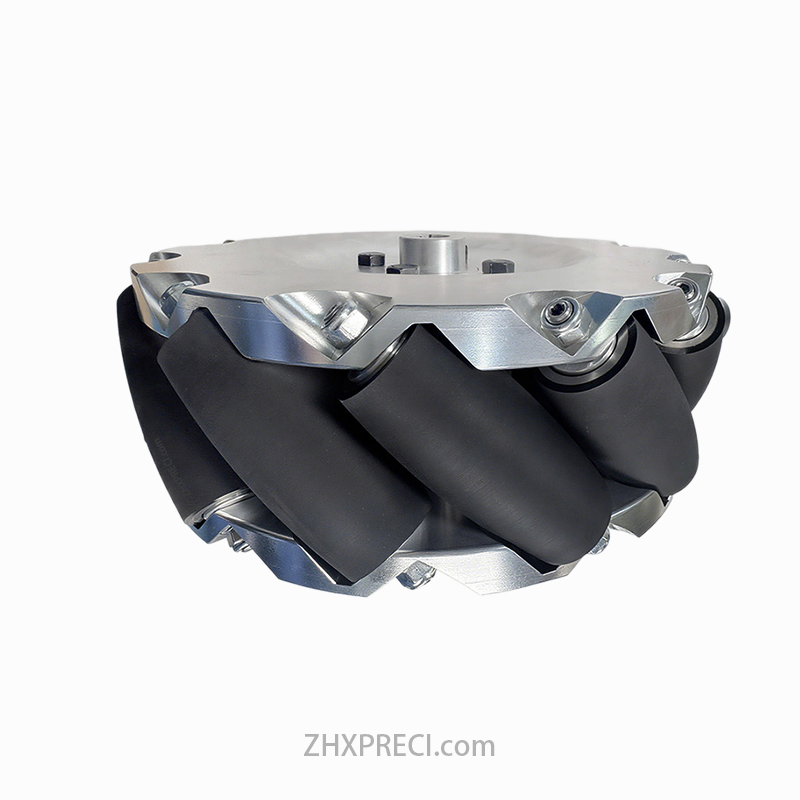

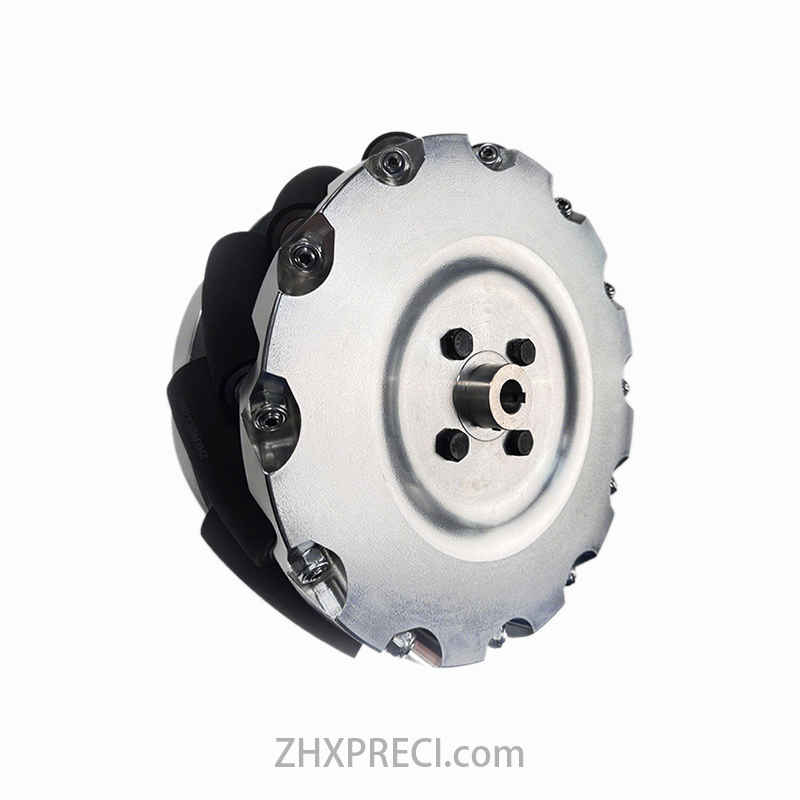

Details Images – Mecanum Wheel Robot Drive Roller Construction
Commonly Used Elastomer Properties – Material Performance for AGV Trolley Wheels (Lab Tested)
| Compound | Hardness Range (Shore A) | Abrasion Resistance | Tear Resistance | Load Bearing |
|---|---|---|---|---|
| Silicone | 40-90 | 1 | 1 | 1 |
| Nitrile/PVC | 20-95 | 4 | 3 | 3 |
| EPDM | 20-95 | 4 | 3 | 3 |
| Nitrile Rubber | 20-95 | 3 | 3 | 3 |
| Neoprene | 5-95 | 3 | 4 | 4 |
| Hypalon | 30-95 | 4 | 4 | 4 |
| Hydrogenated Nitrile | 50-98 | 5 | 5 | 5 |
| Natural Rubber | 25-98 | 5 | 5 | 5 |
| Polyurethane | 20-98 | 5 | 5 | 5 |
| Carboxylated Nitrile | 45-95 | 5 | 5 | 5 |
Ratings: 1 = low, 5 = high (based on ASTM D5963 abrasion, D624 tear). Polyurethane offers the best overall performance for heavy-duty omnidirectional wheels — suitable for AGV and robotics applications. Custom hardness from Shore 20A to 98A is available from our factory for intelligent trolley wheels and universal rollers. For high-temperature environments (＞80°C), we recommend EPDM or Viton.
About ZHXPRECI – China OEM/ODM Factory Specializing in Mecanum Wheel & AGV Accessories
About Us
Customers Visiting
As a China-based manufacturer and OEM/ODM supplier of industrial wheels and rollers since 2010, ZHXPRECI serves clients in over 50 countries. We specialize in mecanum wheel robot drive rollers, intelligent trolley wheels, universal rollers (Fulai wheel), and AGV trolley accessories. Our factory has produced more than 200,000 mecanum wheels for industries like automotive assembly, warehouse automation, and hospital logistics. We offer customization — from roller hardness (Shore A 20°~98°) to hub materials (aluminum, steel, engineering plastic) and mounting patterns (custom bolt circles, keyways, set screws). Our products are tested to meet ISO9001:2025 standards, supporting reliable performance for your automated guided vehicles and robotic systems. Wholesale orders are welcome with competitive direct pricing. We also provide free engineering consultation for your specific AGV platform.
Factory & Equipment – Production of AGV Trolley Wheels (Mecanum & Universal Roller Lines)
Our Certifications (ISO9001:2025, RoHS 3.0, Test Reports)
Production & Inventory Policy
Lead time: Actual delivery time may vary due to raw material availability (especially imported PU raw materials from Germany/Japan), machine scheduling, and peak season fluctuations. After order confirmation, we provide the most accurate estimate and keep transparent communication.
Stock status: We generally do not hold large finished-goods inventory, but some popular standard models (e.g., 152mm black PU) may have limited dynamic stock (which changes as sales and production progress). Please confirm real-time availability with our team before ordering.
Bulk & urgent orders: For mass production or tight schedules, we recommend early discussion of capacity and production planning. We will do our best to support your timeline. For orders above 500 sets, we can reserve dedicated production slots.
Frequently Asked Questions – Mecanum Wheel & AGV Trolley Accessories (Real Customer Inquiries)
1. Do you offer competitive wholesale pricing for mecanum wheel robot drive roller sets?
As a direct China factory, we provide fair pricing based on quantity. For volume orders of 50+ sets of this intelligent trolley wheel, contact us for a tailored quote. Our prices include dynamic balancing and ISO testing reports.
2. How can I get updates on new AGV wheel models or stock availability of Fulai wheel?
Reach out to our sales team to be added to our VIP list. We regularly share new polyurethane compound developments (e.g., anti-static, flame-retardant) and stock updates for universal rollers.
3. What is the minimum order quantity for this NM152A universal roller set?
Small orders (1-4 sets) are generally accepted for sample evaluation. For custom hardness or steel core versions, MOQ is typically 10 sets. Please inquire for current flexibility – we sometimes combine small orders for newcomers.
4. What is your typical lead time for standard vs custom mecanum wheel robot drive rollers?
For standard NM152A sets (if raw materials are in stock), we can ship within 7-10 days. Custom orders (e.g., different PU hardness or steel core) usually take 15-25 days depending on production schedule and material supply. We always confirm an updated timeline after order placement.
5. What packaging options do you provide for international shipping of intelligent trolley wheels?
Standard packaging includes individual plastic bags and sturdy cartons. For bulk orders, we offer wooden cases, pallets, or container loading. Anti-rust treatment is applied for sea freight (VCI paper + desiccant).
6. How do you ensure quality consistency for heavy-duty omnidirectional Fulai wheels?
Each batch undergoes roller adhesion tests (pull-off force > 200N), dynamic balancing (≤0.05mm), and load validation (125% of rated load for 1 hour). We are ISO9001 certified and follow strict in-process inspection with traceability codes. Overseas machine downtime is costly, so we don't compromise on materials.
7. What is the purchasing process for OEM/ODM orders of AGV trolley accessories?
Contact us with your requirements (size, roller material, hardness, mounting pattern, axle bore, keyway). Our engineers provide drawing confirmation (2D and 3D), then we issue a proforma invoice. After payment, production begins with sample photos or pre-shipment video inspection.
8. What payment methods do you accept for universal roller orders?
We accept bank transfer (T/T), and for smaller orders, PayPal or Western Union. Long-term partners may discuss letter of credit (L/C at sight). Ask our team for details.
9. Which shipping methods are available for mecanum wheel robot drive roller sets?
We ship by express (DHL, UPS, FedEx, TNT) for small parcels (1-4 sets), by air freight for medium volumes (5-50 sets), or by sea freight for full containers (51+ sets). We'll advise the most cost-effective option based on your location and urgency.
10. What warranty do you offer on polyurethane Fulai wheels for AGV trolleys?
Standard warranty is 180 days from shipment date against manufacturing defects (roller separation, hub cracks, or material delamination). Extended warranty (12 months) is available for bulk orders. Normal wear and tear or improper installation is not covered.
11. Can you customize polyurethane hardness for heavy-duty intelligent trolley wheels?
Yes. As an OEM/ODM manufacturer in China, we provide roller hardness from Shore A 20° up to 98°, as well as special compounds like anti-static (10^6-10^9 ohm) or oil-resistant PU for AGV applications. Let us know your load and speed requirements.
12. What is the estimated lead time for a customized mecanum wheel set (e.g. 152mm with steel core) for AGV trolley?
For small batch custom orders (10-50 sets), typical lead time is around 15-25 days but may vary depending on raw material supply and shop load. Larger wholesale orders (100+ sets) may take 30-40 days. We always provide an updated schedule when you place an order.
13. Do you provide custom samples or mounting plate designs for universal rollers?
Custom samples are available with a reasonable sample fee (refundable on bulk order). Our engineering team supports 2D/3D drawings modification for mounting patterns, bolt circles, and axle sizes. Just share your design file (STEP, IGES, or PDF).
14. Can your Fulai wheels be used in outdoor or dusty environments for AGV trolleys?
Our PU-coated wheels offer good resistance to dust, water, and mild chemicals. For extreme conditions (high temperature >80°C or oil immersion), we recommend EPDM or Viton compounds. Contact our team for material selection guidance. We have supplied wheels for outdoor port AGVs with special UV-resistant PU.
15. How do you handle left-hand and right-hand wheel orientation? Are they clearly marked?
Yes. Each wheel is stamped with "L" or "R" on the hub, and we provide a mounting diagram. The set includes two left-handed and two right-handed wheels. Incorrect orientation will cause the vehicle to drift, so we also include a quick reference card.
Looking for a reliable manufacturing partner for your mecanum wheel robot drive roller?
Get in touch for quick quotes, custom samples (intelligent trolley wheel, universal roller, Fulai wheel), and volume discounts. We are here to support your AGV trolley accessory project from design to delivery. Ask about our free motion simulation service for your vehicle layout.
