Description

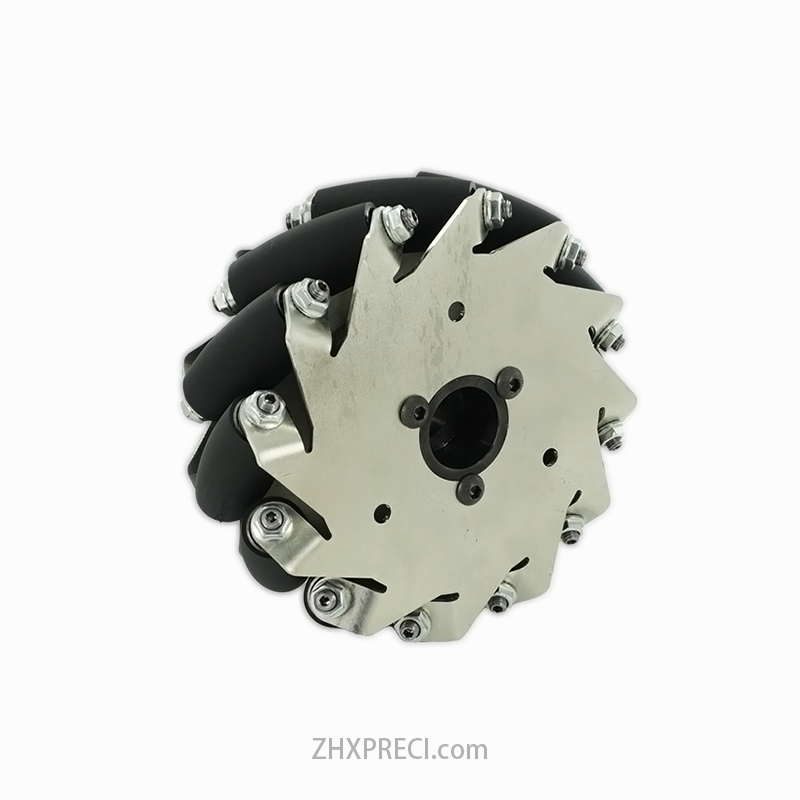

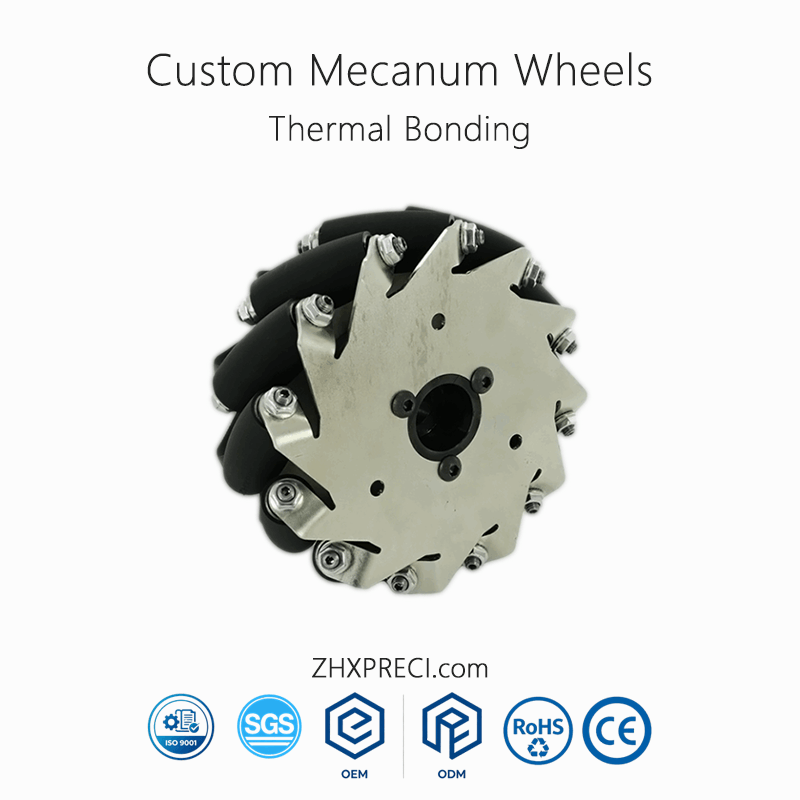

Mecanum Wheel Set 152mm (6 Inch) NM152A: Heavy-Duty PU Rollers, 300kg Load Capacity, Omni-Directional for AGV & Robotics
Why choose this mecanum wheel set?
Designed for heavy loads and 360° omnidirectional movement. Each wheel features an aluminum alloy hub and precision polyurethane-coated rollers with steel core, providing excellent wear resistance, shock absorption, and vibration damping. Advanced bonding technology minimizes delamination risks even under continuous industrial use.
Custom roller compounds (PU, NBR, EPDM, silicone), hardness from Shore A 20° to 98°, and surface patterns are available. Dynamic balancing tolerance ≤0.05mm. ISO9001 certified, oil-resistant and chemical-resistant formulas help reduce noise and maintenance.
Typical applications: AGVs, heavy-load omnidirectional platforms, conveyor systems, printing equipment, automated production lines, stage machinery, workshop trolleys.
Technical Specifications
This set contains four high‑performance mecanum wheels. Suitable for robotics, AGV, and industrial automation where precise multidirectional control is required. As a China OEM/ODM manufacturer, we support customized sizes and materials.
| NM152A – Heavy Duty Polyurethane Mecanum Wheel Set (6 inch / 152mm) | |
| Diameter | 152.4 mm (6 inch) |
|---|---|
| Width | 80 mm |
| Number of Rollers | 8 |
| Number of Plates | 2 |
| Body Material | Aluminum alloy |
| Roller Material | Aluminum core + Polyurethane coating (steel core optional) |
| Net Weight | 2.6 kg × 4 (10.4 kg total for set) |
| Load Capacity | 300 kg / Set (≈ 661 lbs) |
| Certifications | ISO9001, Test Report, RoHS |
| Packing Options | Plastic bags, cartons, wooden case, pallet, container, etc. |
| Color Options | White, black, or as your requirement |
| Custom Diameter Range | 5–200 mm (standard set 152.4 mm, custom diameters available) |
| Services & Support | 24/7 customer service, shipping tracking, new style notifications, free two revisions on custom orders |
✔ Set includes 4 mecanum wheels (each 2.6 kg). ✔ Heavy‑duty omnidirectional design – 360° movement. ✔ Custom materials & full certifications – contact us for bulk orders.
Details Images
Commonly Used Elastomer Properties (Material Performance)
| Compound | Hardness Range (Shore A) | Abrasion Resistance | Tear Resistance | Load Bearing |
|---|---|---|---|---|
| Silicone | 40-90 | 1 | 1 | 1 |
| Nitrile/PVC | 20-95 | 4 | 3 | 3 |
| EPDM | 20-95 | 4 | 3 | 3 |
| Nitrile Rubber | 20-95 | 3 | 3 | 3 |
| Neoprene | 5-95 | 3 | 4 | 4 |
| Hypalon | 30-95 | 4 | 4 | 4 |
| Hydrogenated Nitrile | 50-98 | 5 | 5 | 5 |
| Natural Rubber | 25-98 | 5 | 5 | 5 |
| Polyurethane | 20-98 | 5 | 5 | 5 |
| Carboxylated Nitrile | 45-95 | 5 | 5 | 5 |
Ratings: 1 = low, 5 = high. Polyurethane offers good overall performance for heavy-duty omnidirectional wheels — suitable for AGV and robotics applications. Custom hardness from Shore 20A to 98A is available from our factory.
About ZHXPRECI – China OEM/ODM Factory
About Us
Customers Visiting
As a China-based manufacturer and OEM/ODM supplier of industrial wheels and rollers since 2010, ZHXPRECI serves clients in over 50 countries. We offer customization — from roller hardness (Shore A 20°~98°) to hub materials and mounting patterns. Our products are tested to meet ISO9001 standards, supporting reliable performance for your automated guided vehicles and robotic systems. Wholesale orders are welcome with competitive direct pricing.
Factory & Equipment
Our Certifications (ISO9001, RoHS, Testing Reports)
Production & Inventory Policy
Lead time: Actual delivery time may vary due to raw material availability, machine scheduling, and peak season fluctuations. After order confirmation, we provide the most accurate estimate and keep transparent communication.
Stock status: We generally do not hold large finished-goods inventory, but some popular standard models may have limited dynamic stock (which changes as sales and production progress). Please confirm real-time availability with our team before ordering.
Bulk & urgent orders: For mass production or tight schedules, we recommend early discussion of capacity and production planning. We will do our best to support your timeline.
Frequently Asked Questions
1. Do you offer competitive wholesale pricing for mecanum wheel sets?
As a direct China factory, we provide fair pricing based on quantity. For volume orders of 50+ sets, contact us for a tailored quote.
2. How can I get updates on new AGV wheel models or stock availability?
Reach out to our sales team to be added to our VIP list. We regularly share new polyurethane compound developments and stock updates.
3. What is the minimum order quantity for this NM152A set?
Small orders (1-4 sets) are generally accepted for sample evaluation. For custom hardness or steel core versions, MOQ is typically 10 sets. Please inquire for current flexibility.
4. What is your typical lead time for standard vs custom mecanum wheels?
For standard NM152A sets (if raw materials are in stock), we can ship within 7-10 days. Custom orders (e.g., different PU hardness or steel core) usually take 15-25 days depending on production schedule and material supply. We always confirm an updated timeline after order placement.
5. What packaging options do you provide for international shipping?
Standard packaging includes individual plastic bags and sturdy cartons. For bulk orders, we offer wooden cases, pallets, or container loading. Anti-rust treatment is applied for sea freight.
6. How do you ensure quality consistency for heavy-duty omnidirectional wheels?
Each batch undergoes roller adhesion tests, dynamic balancing (≤0.05mm), and load validation. We are ISO9001 certified and follow strict in-process inspection. Overseas machine downtime is costly, so we don't compromise on materials.
7. What is the purchasing process for OEM/ODM orders?
Contact us with your requirements (size, roller material, hardness, mounting pattern). Our engineers provide drawing confirmation, then we issue a proforma invoice. After payment, production begins with sample photos or pre-shipment video inspection.
8. What payment methods do you accept?
We accept bank transfer (T/T), and for smaller orders, PayPal or Western Union. Long-term partners may discuss letter of credit. Ask our team for details.
9. Which shipping methods are available for mecanum wheel sets?
We ship by express (DHL, UPS, FedEx, TNT) for small parcels, by air freight for medium volumes, or by sea freight for full containers. We'll advise the most cost-effective option based on your location and urgency.
10. What warranty do you offer on polyurethane mecanum wheels?
Standard warranty is 180 days from shipment date against manufacturing defects. Extended warranty (12 months) is available for bulk orders. Normal wear and tear or improper installation is not covered.
11. Can you customize polyurethane hardness for heavy-duty mecanum wheels?
Yes. As an OEM/ODM manufacturer in China, we provide roller hardness from Shore A 20° up to 98°, as well as special compounds like anti-static or oil-resistant PU for AGV applications. Let us know your load and speed requirements.
12. What is the estimated lead time for a customized mecanum wheel set (e.g. 152mm with steel core)?
For small batch custom orders (10-50 sets), typical lead time is around 15-25 days but may vary depending on raw material supply and shop load. Larger wholesale orders (100+ sets) may take 30-40 days. We always provide an updated schedule when you place an order.
13. Do you provide custom samples or mounting plate designs?
Custom samples are available with a reasonable sample fee (refundable on bulk order). Our engineering team supports 2D/3D drawings modification for mounting patterns, bolt circles, and axle sizes. Just share your design file.
14. Can your mecanum wheels be used in outdoor or dusty environments?
Our PU-coated wheels offer good resistance to dust, water, and mild chemicals. For extreme conditions (high temperature or oil immersion), we recommend EPDM or Viton compounds. Contact our team for material selection guidance.
